【CZ】EBL AA AAA Rechargeable Batteries with FY-409 4-Bay Individual LCD Charger

Download User Guide (PDF)

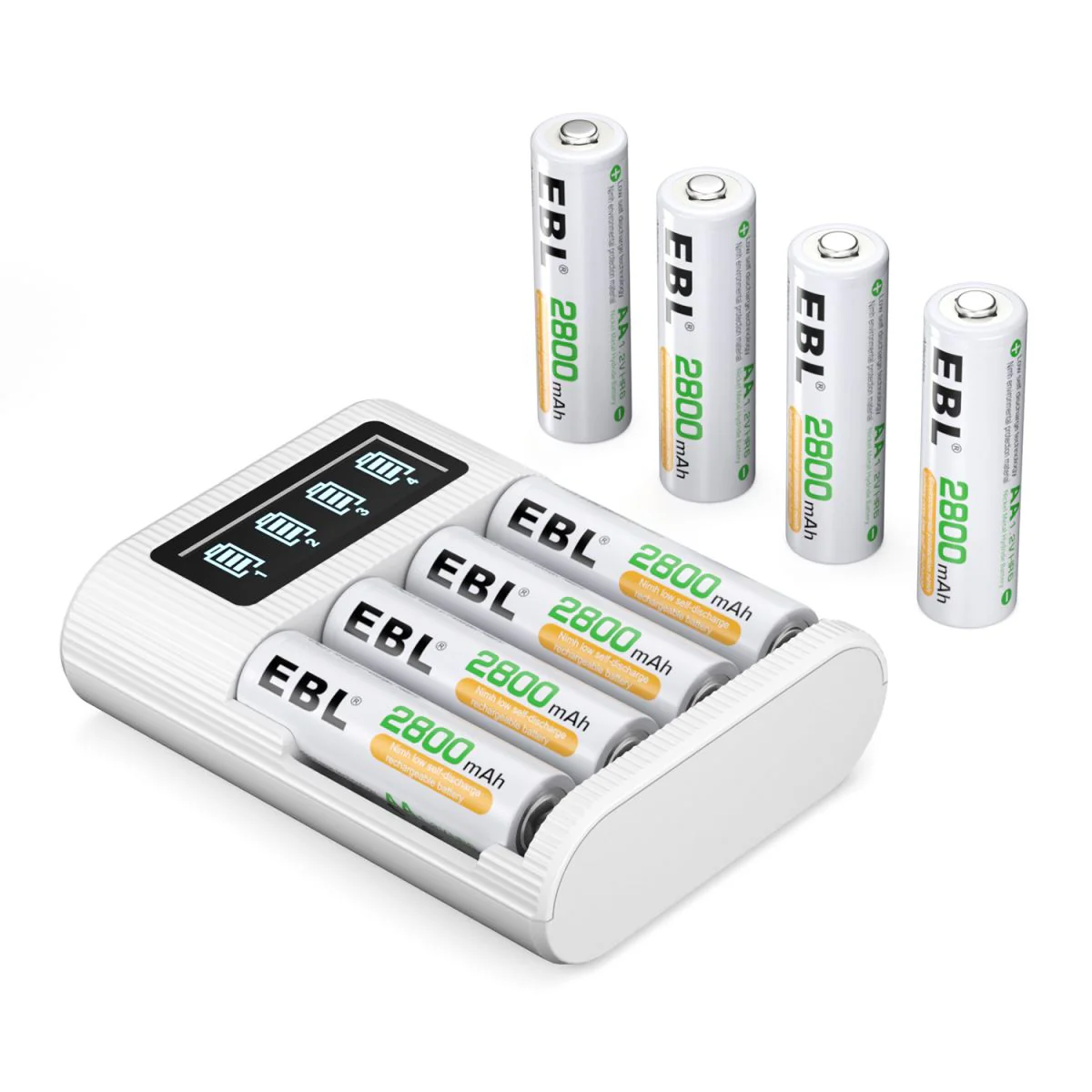

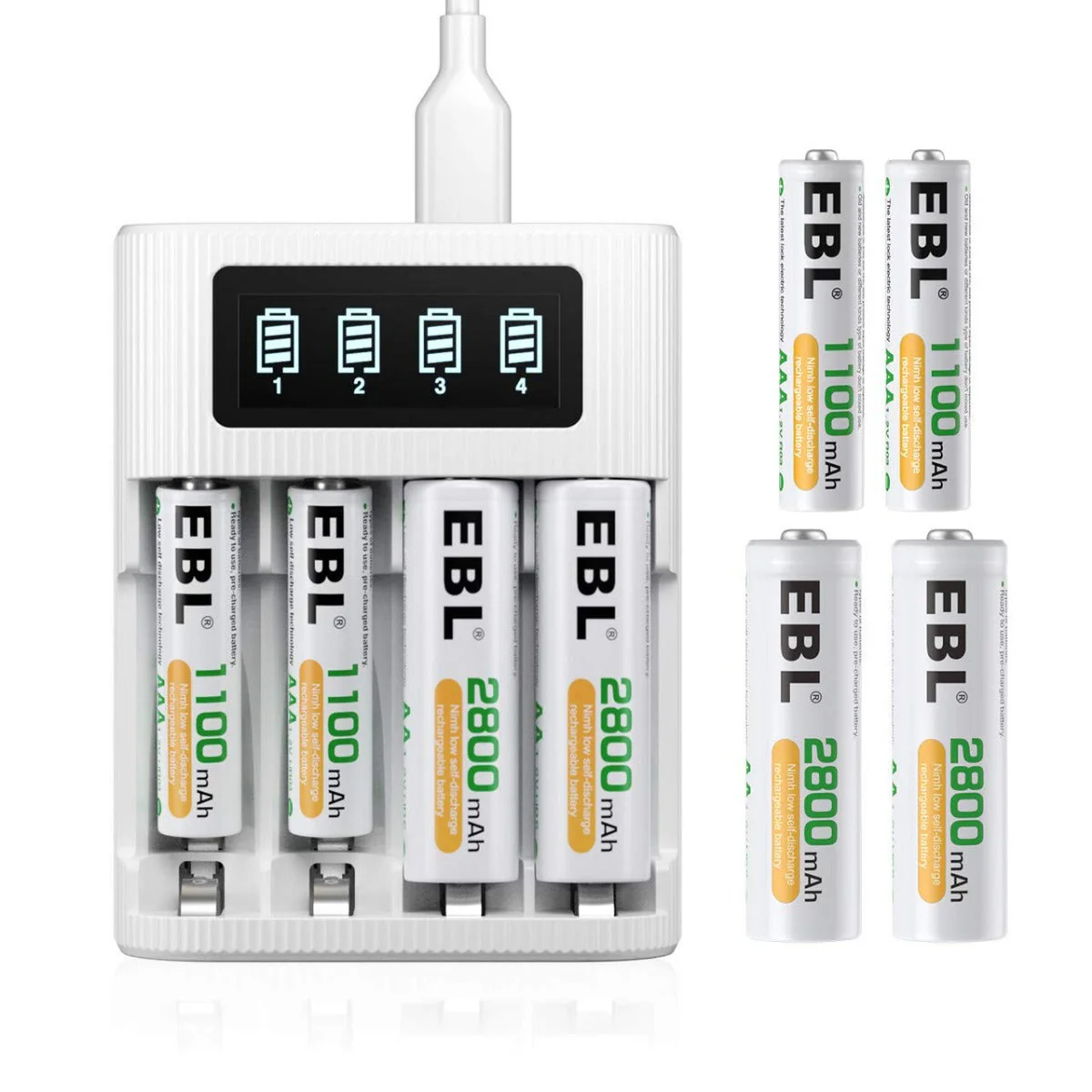

EBL AA AAA Rechargeable Batteries with Individual LCD Battery Charger for AA AAA NiMH NiCD Batteries

【Independent Charging Slot 】

EBL LCD battery charger for AA AAA NiMH NiCD rechargeable battery, you can charge 1/2/3/4 batteries freely. Small size design and more functional battery charger make the charging more convenient.

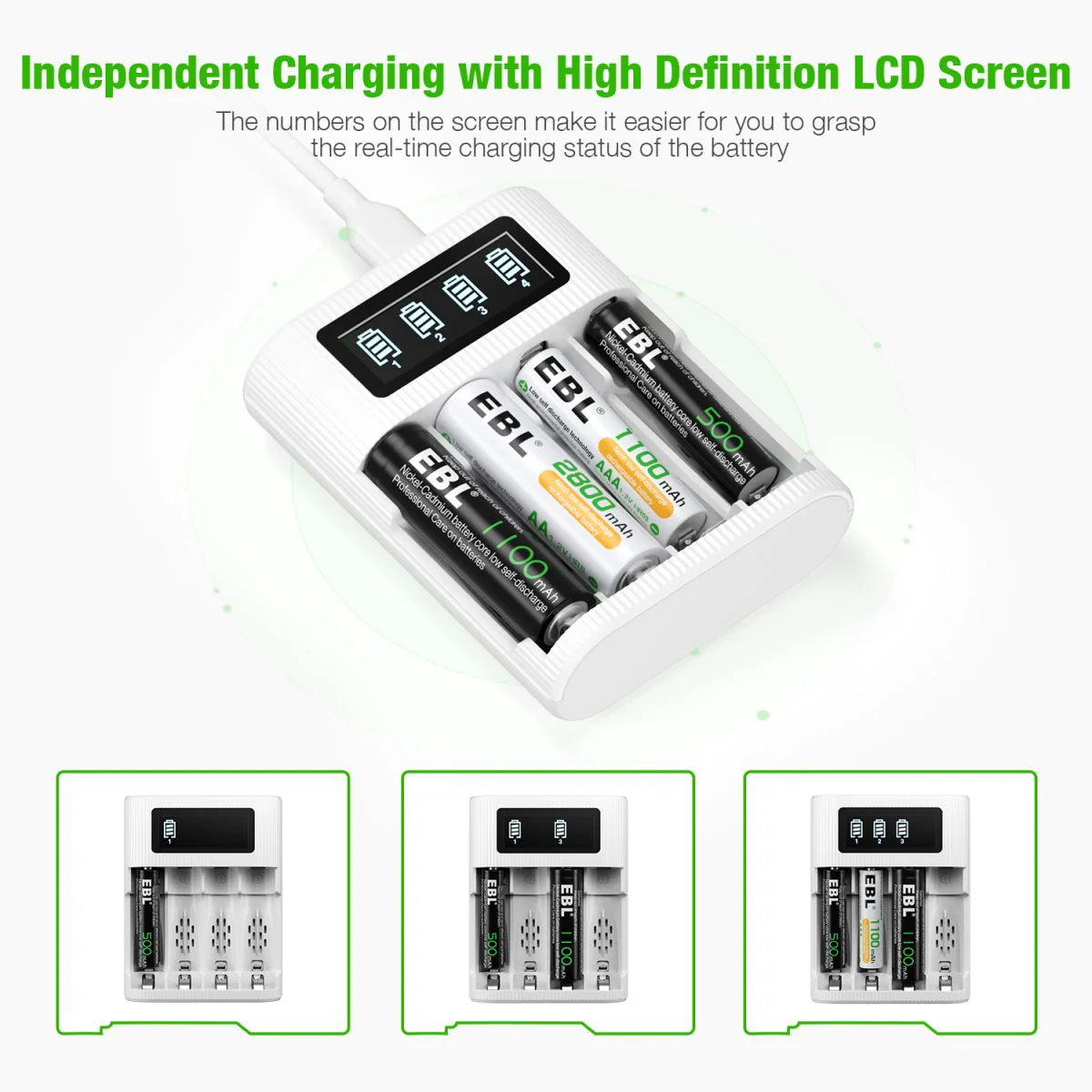

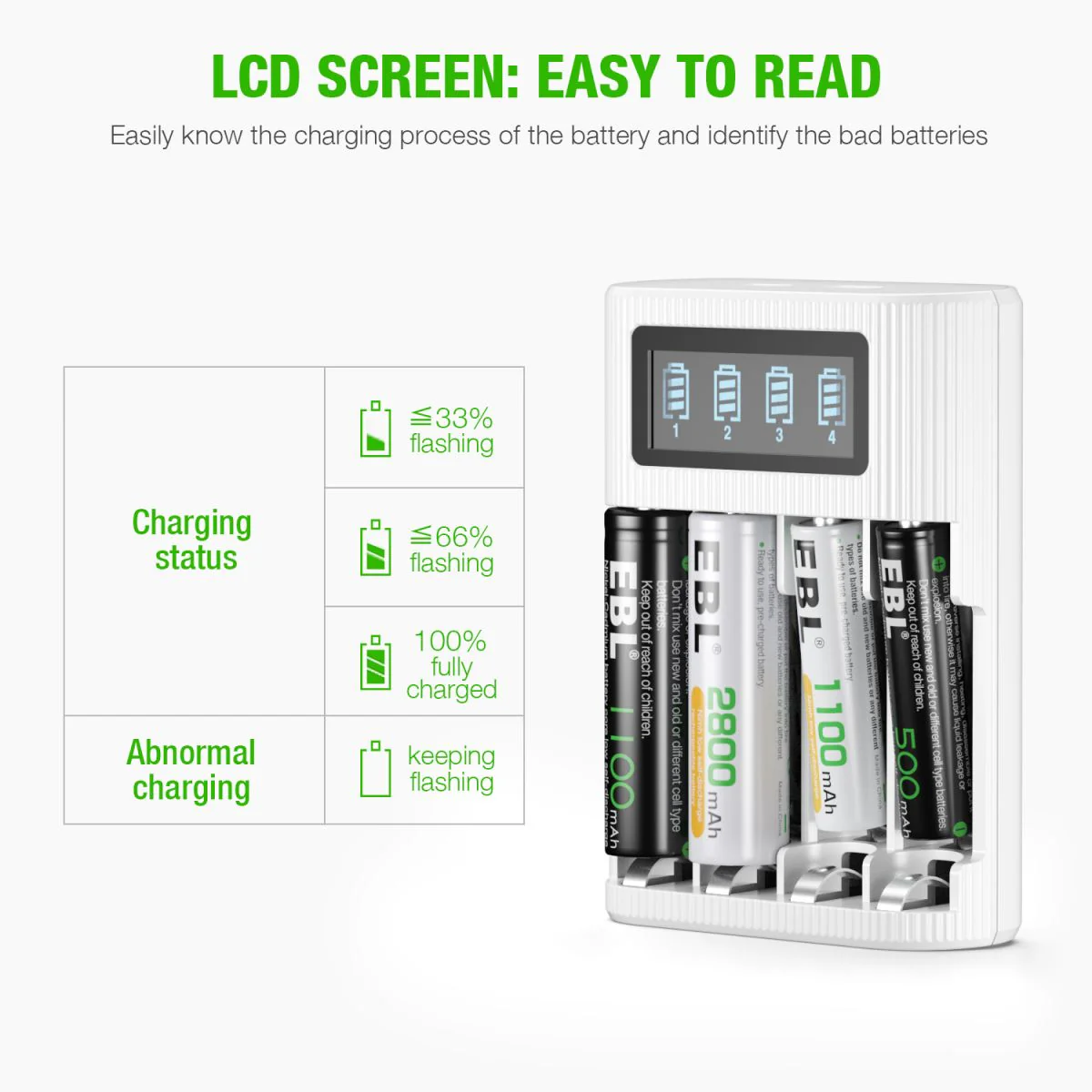

【Clear LCD display】

Easy understanding number on the clear display screen for each channel, easily know the charging process of the battery and identify the bad batteries. You can read the capacity status of the batteries clearly while the batteries are charging in daily usage.

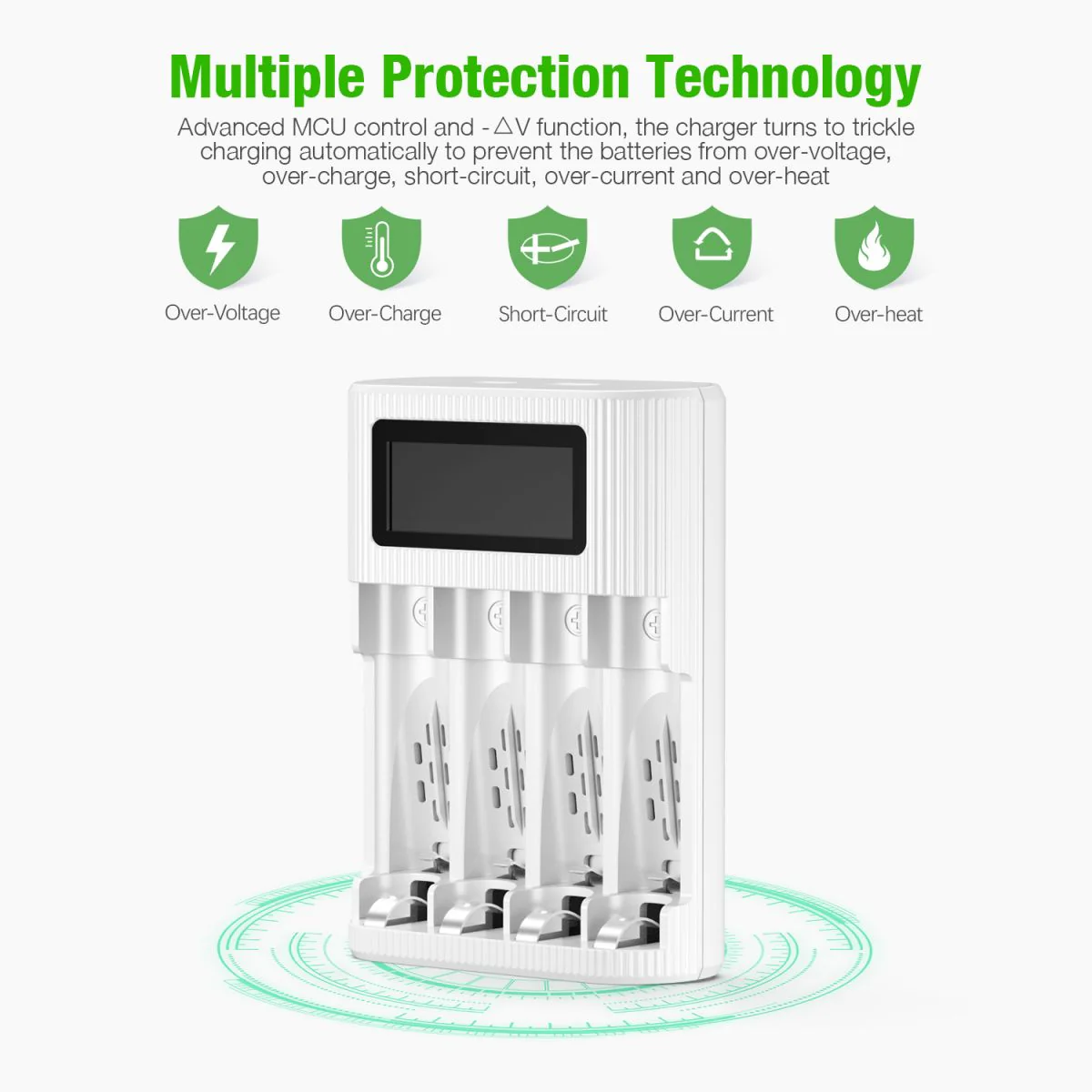

【Ensure Safety】

Safe Charging - Advanced MCU control and -∆V function, as well as over-heat and over-current protection, short-circuit protection, non-rechargeable and defective battery detection, more safer charger to protect the whole charging process.

【Great Outgoing Partner】

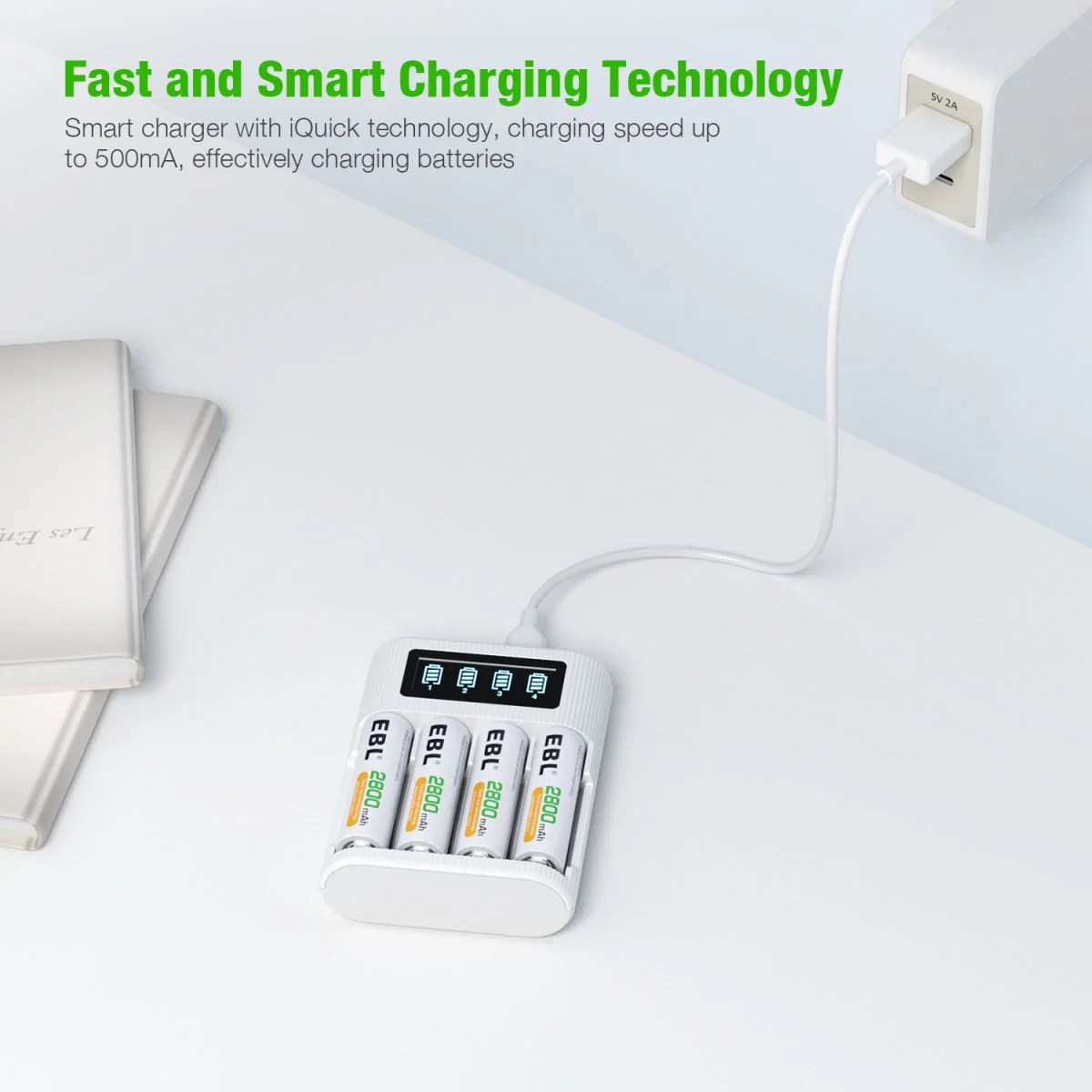

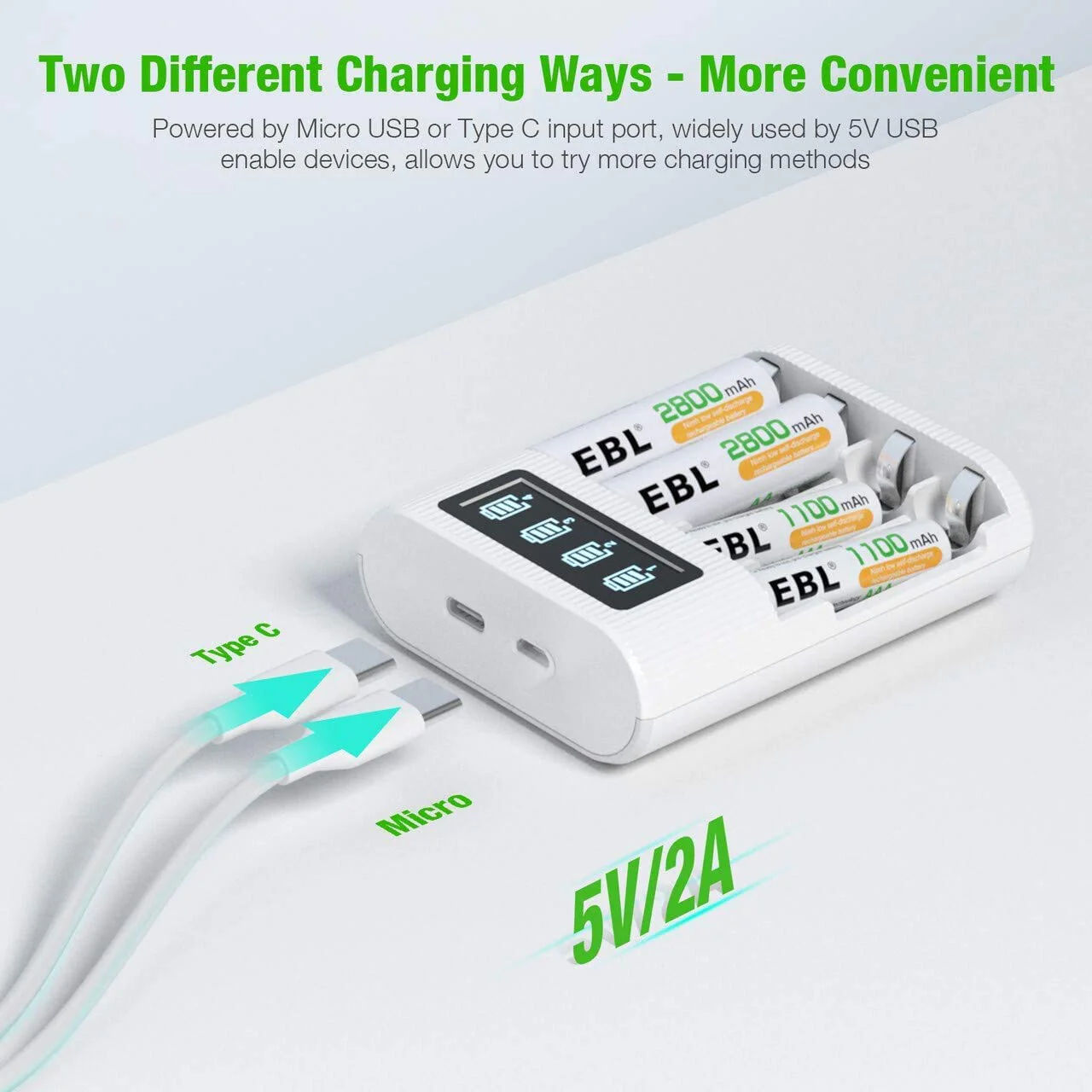

2A inputed with USB and Type-C ports, could be freely charged by PC, Wall charger, power bank, car charger. Could be used any where as you liked.

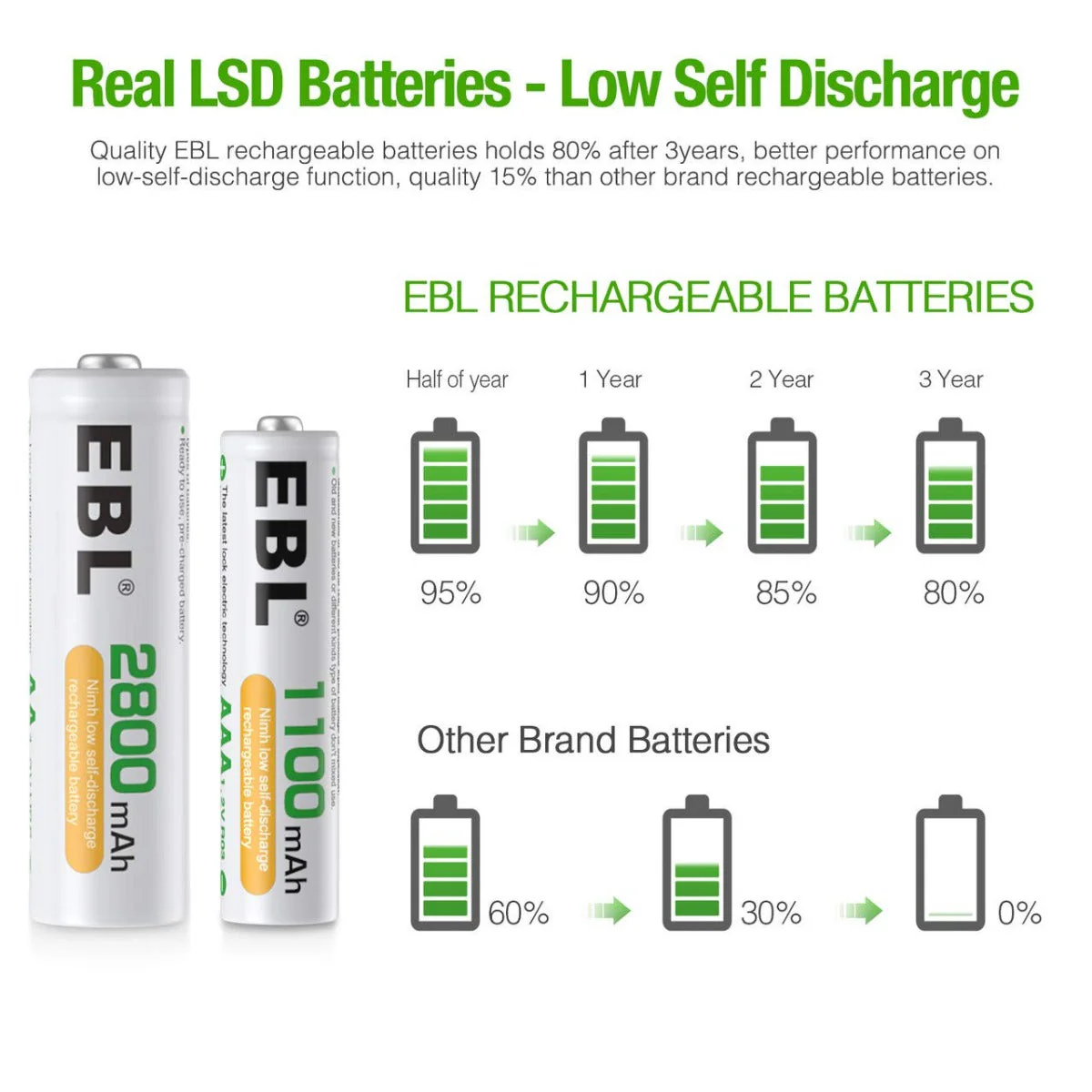

【Low self-discharge】

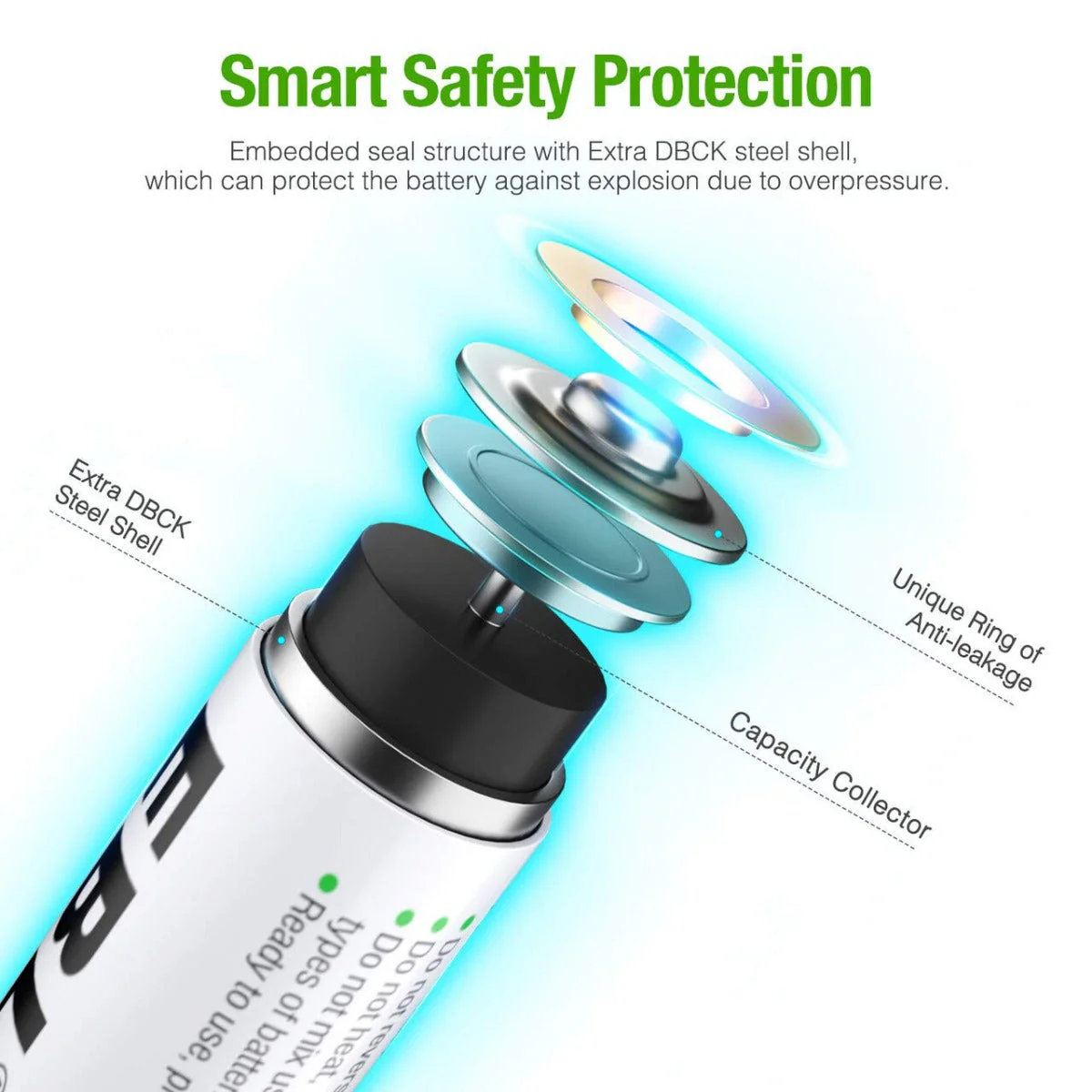

Embedded seal structure expand the space of crystal lattice, make more room for hydrogen, so EBL batteries will holds 80% power after 3 years benefit from its concentration to low self-discharge project.

【Specification of battery charger】

Product Type	FY-409 Battery Charger	Brand	EBL
Compatible	1.2V AA AAA NiMH NiCD rechargeable battery
Input Voltage	5V DC±5%	Input Current	2A
Output Voltage	1.4V DC ±15%
Weight	71.3±5g/2.69oz	Size	(89.72*69.49*26.26)±0.3mm

【Specification of AA Battery】

Battery Size	AA Batteries	Brand	EBL
Voltage	1.2V	Battery Type	Ni-MH
Rechargeable	Yes	Capacity	2800mAh
Charge Current	Trickle: 0.02C-0.05C Standard: 210mA x 16H Quick: 420mA x 7H Rapid: 1050mA x 2.4H	Discharge Current	Standard: 420mA High Rate: 2100mA
End voltage of discharge	1V
Open circuit voltage	1.25V	Internal impedance	≤38mΩ
Weight of Single AA Battery	24.8g/0.87oz	Dimensions of Single AA Battery	(50.5-1)*(14.5-0.7)mm

【Specification of AAA Battery】

Battery Size	AAA Batteries	Brand	EBL
Voltage	1.2V	Battery Type	Ni-MH
Rechargeable	Yes	Capacity	1100mAh
Charge Current	Trickle: 0.02C-0.05C Standard: 80mA(0.1C) for 16H Quick: 160mA (0.2C)  for 7H Rapid: 400mA (0.5C)  for 2.4H	Discharge Current	Standard: 160mA (0.2C)  High Rate: 800mA (1C)
End voltage of discharge	1V
Open circuit voltage	1.25V	Internal resistance	≤40 mΩ
Weight of Single AAA Battery	12±1.5g/0.42oz	Dimensions of Single AAA Battery	(44.35±0.3)*(10.35±0.25)mm

【 What You Get 】

• 8 x AA 2800mAh rechargeable batteries / 4 x AA 2800mAh rechargeable batteries and 4 x AAA 1100mAh rechargeable batteries
• 1 x EBL FY-409 battery charger
• 1 x user manual
• 1 x Micro USB Cable

Battery Notice:
Please activate the battery once every 3 months according to the following method. Otherwise, may cause battery capacity attenuation, reducing the battery service life, and so on. Charge at 0.1C for 16 hrs, rest 10 min, then discharge with 0.2C to 1.0V/cell, rest 10 min, then charge at 0.2C to 150min.
